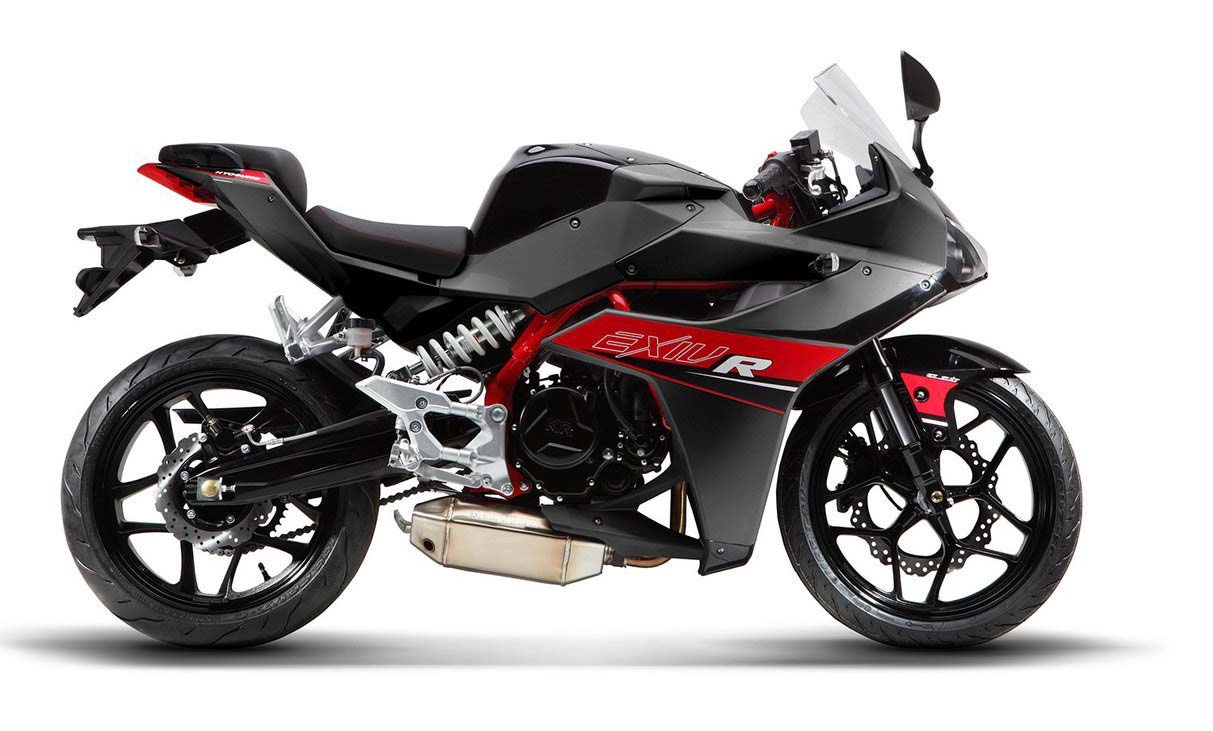

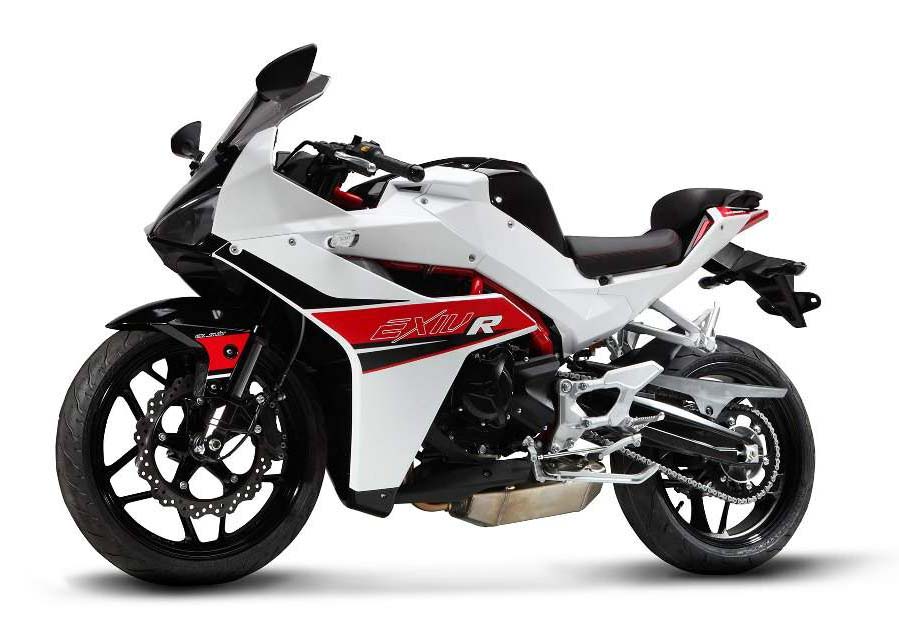

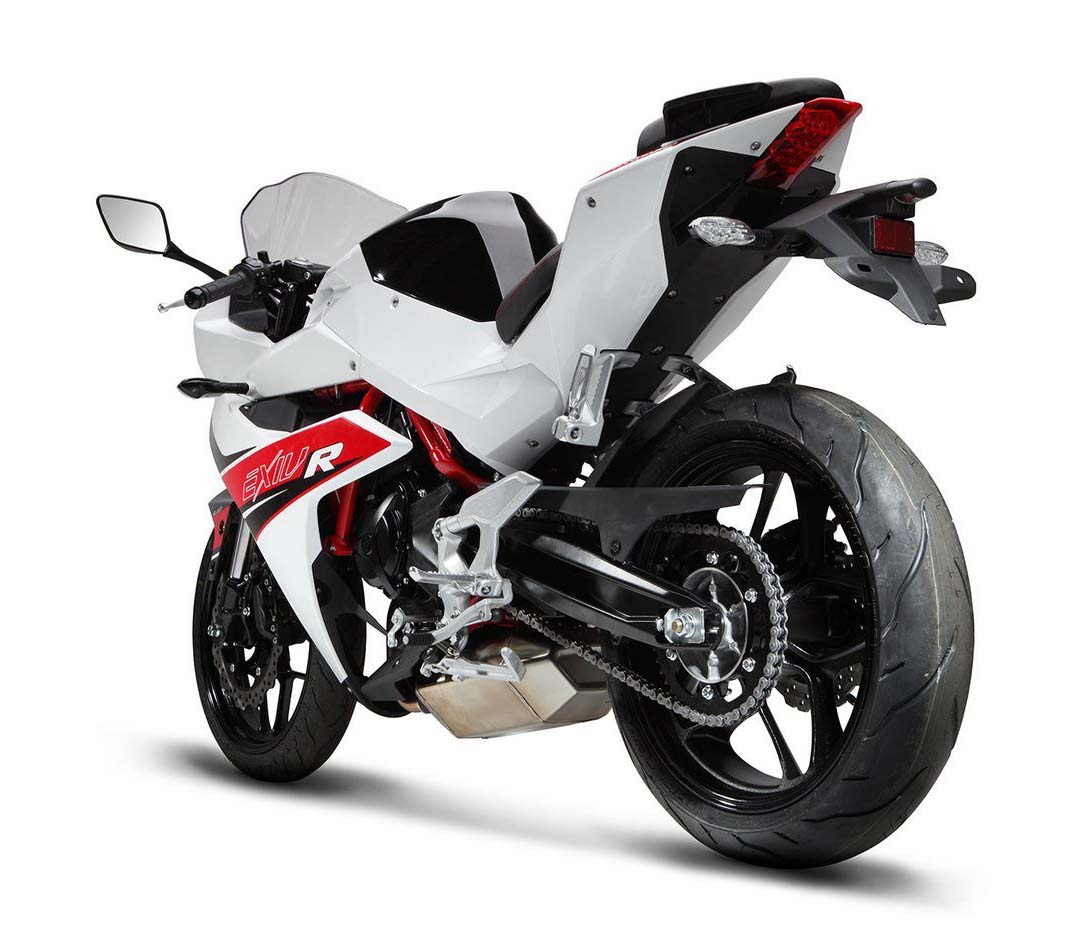

Hyosung GD250R
Make Model. | Hyosung GD250R |
Year | 2017 - 18 |

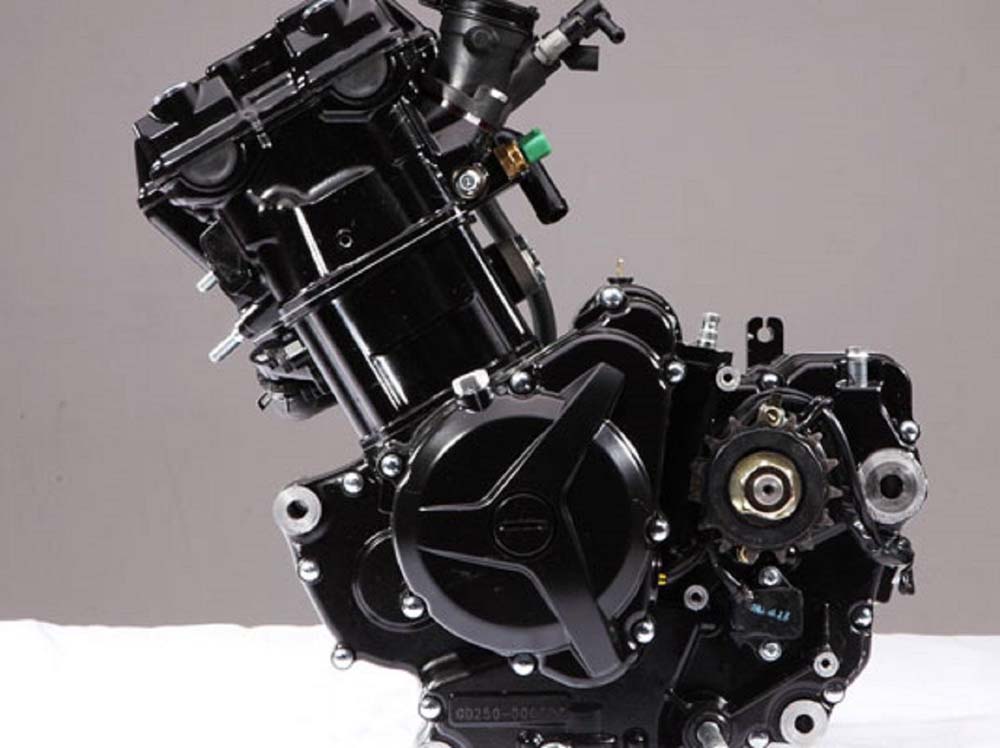

Engine | Single cylinder, DOHC, 4 valves |
Capacity | 249 cc / 15.2 cu in |
Bore x Stroke | 73 x 59.6 mm |
Compression Ratio | 12:1 |
Cooling System | Liquid cooled |
Lubrication System | Wet sump |
Induction | Electronic fuel injection |
Ignition | Electronic |
Starting | Electric |
Max Power | 21.2 kW / 28.4 hp @ 8500 rpm |
Max Torque | 26.1 Nm / 2.56 kgf-m / 19.25 ft-lb @ 7000 rpm |
Clutch | Wet, multiplate |
Transmission | 6-Speed, close ratio, constant mesh |
Final Drive | Chain |
Frame | Tubular steel trellis perimeter frame |
Front Suspension | 37 mm Inverted telescopic hydraulic fork |
Rear Suspension | Twin sided swingarm, gas charged hydraulic single shock, nonstep preload adjustable |
Front Brakes | 300 mm Single disc, 4 opposed piston caliper |
Rear Brakes | 230 mm Single disc, 2 opposed piston caliper |
Front Tyre | 110/70-R17 54S |
Rear Tyre | 150/60-R17 66S |
Rake | 23.50 |
Trail | 93.6 in / 3.7 in |
Dimensions | Length: 1937 mm / 76.3 in Width: 700 mm / 27.6 in Height: 1100 mm / 43.3 in |
Wheelbase | 1346 mm / 53.0 in |
Ground Clearance | 135 mm / 5.3 in |
Seat Height | 790 mm / 31.1 in |
Wet Weight | 160 kg / 352 lbs |
Fuel Capacity | 11 L / 2.9 US gal / 2.4 Imp gal |
The GD250 is a lightweight, nimble street bike allowing all riders (beginners and experienced) to experience the true essence of sport riding.
Features and benefits:
Z-suit system. (Switchable riding position to suit various lifestyles.)
Super sports position
- Focus on sports riding.
- Excellent controllability.
Street sports position
- Focus on daily street riding.
- Excellent accessibility.
Layout (Mass centralization - to the center of gravity of vehicle)
- Engine is located near in the steering head.
- Fuel tank is located near in the COG.
- Muffler is located below the swingarm pivot.
- Electric equipment unit is located near in the steering head.
Frame
- X-5's steel tubular trellis frame is designed to connect directly between the steering head and pivot. Its compact size reduces weight while enhancing the rigidity of the frame.
- X-5 is equipped with a long 553mm swingarm coupled with the short 1340mm wheelbase.
These features combine to provide a dynamic steering characteristic and constant movement of the suspension.

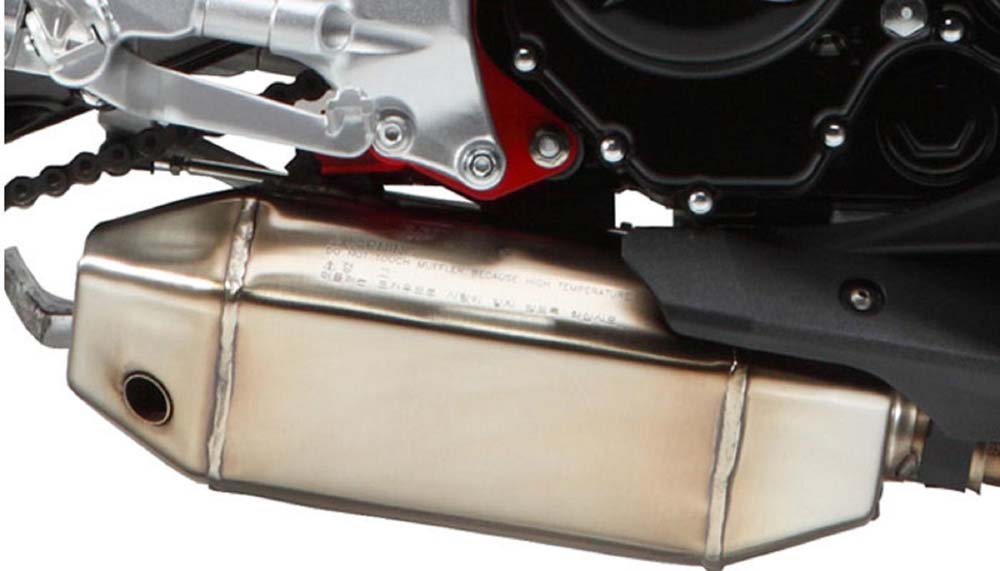

Muffler
- Silencer located below the swingarm pivot which improves mass centralization.
Centralized muffler having optimized center of gravity gives X-5 more active handling.
Fuel tank
- Fuel tank located near in the COG. which improves weight centralization.
- Fuel tank is tilted toward swingarm pivot, the fuel always gathers around the center of gravity. This feature provides natural steering character by reducing the amount of front / rear weight transfer.
- Fuel tank is made from plastic for weight reduction.
Brakes
- Front: � 300mm single disc, opposed 4 piston caliper.
- Rear: � 230mm single disc, opposed 2 piston caliper.
Suspension
- Front: � 37mm upside down telescopic fork (120mm travel)
- Rear: Dual side Aluminum Swing arm with Gas charged Hydraulic shock absorber (Nonstep Preload adjustable)
- The monocross shock absorber is laterally mounted because this solution frees up space to the centrally located fuel tank, allowing perfectly symmetrical weight distribution. The lateral shock absorber is pivoted directly on the swingarm.
Electric equipment unit box
- Electric equipment unit box is located at the top of the cylinder head. It contains battery, ECU, relay, fuse, regulator, sensor, etc.
- This unit construction improves maintainability while reducing weight by shortening the harness and reducing the number of brackets.
Source: https://www.motorcyclespecs.co.za/model/Hyosung/Hyosung_GD250R_17.htm
